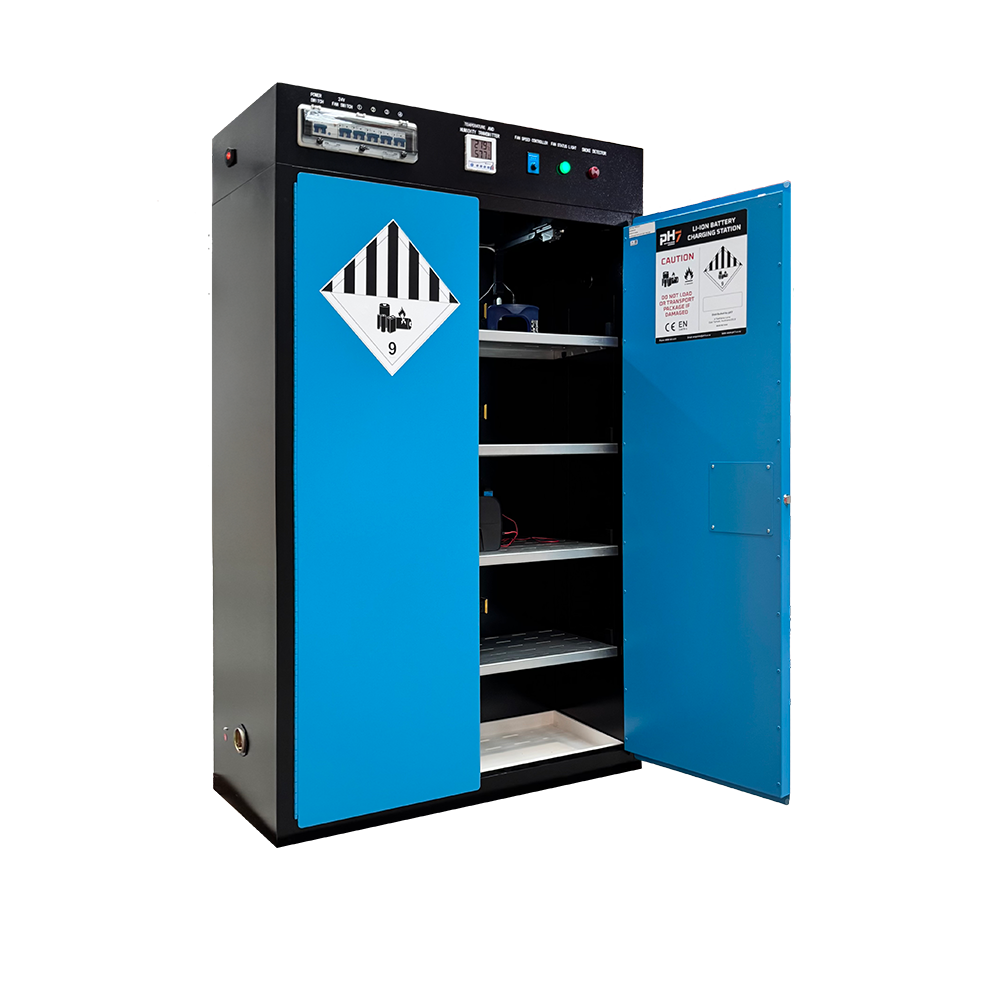

Lithium Ion Battery Cabinet 170L (2 Door)

This 170L 2 Door Lithium Ion Battery Smart Charging Cabinet delivers safe, efficient Li-Ion battery charging with smart technology and advanced fire protection.

Built with double steel walls featuring a 40mm gap, it meets FM6050, OSHA 1910.106, and NFPA 30 standards. Enjoy smart charging, real-time temperature and humidity monitoring, and an adjustable exhaust fan, along with four adjustable shelves offering 32 lightning-protected sockets.

Ideal for commercial and industrial applications, it provides a secure, user-friendly solution for optimal battery performance.

Experience advanced energy management with the 170L 2 Door Lithium Ion Battery Smart Charging Cabinet. Specifically engineered for the safe and efficient charging of Li-Ion batteries, this cutting-edge charging station is packed with smart features to maintain optimal battery temperature and detect potential faults early—minimizing fire risks. Constructed with double steel walls featuring a 40mm gap for superior insulation, this cabinet meets stringent safety standards including FM6050, OSHA 1910.106, and NFPA 30, making it ideal for commercial, industrial, and high-demand residential applications.

Key Features
Smart Charging Technology: Adaptive charging algorithms ensure optimal battery health and performance.

Enhanced Safety & Fire Protection:

Highly sensitive smoke detector and alarm for early emergency warning.

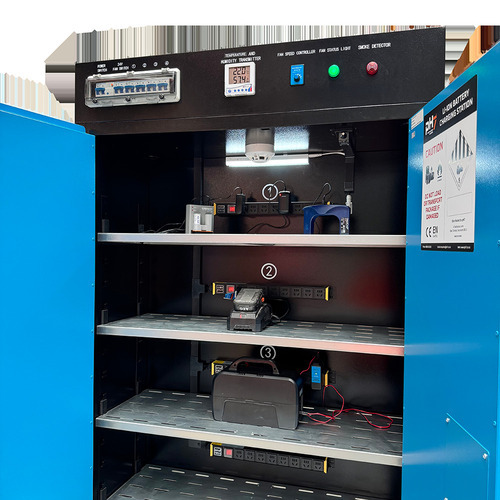

Temperature and humidity sensors visible from the exterior for real-time monitoring.
Adjustable exhaust fan efficiently dissipates warm air.


Robust Construction:

Double steel walls with a 40mm gap provide superior insulation and fireproofing.
Internal light automatically activates when the doors are opened.


Innovative Design & Connectivity:

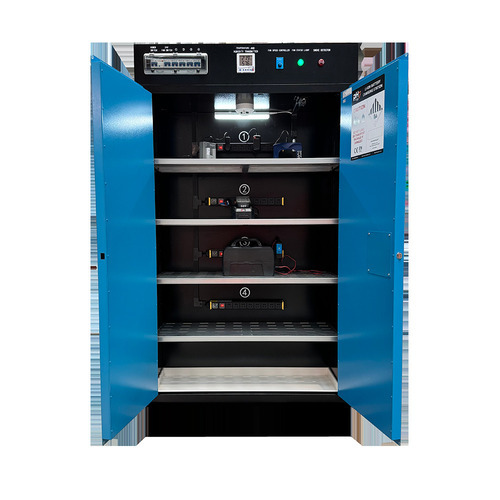

Dual door configuration for streamlined access.
Four adjustable shelves featuring perforations for optimal air circulation.


Extensive Plugging Options: Each shelf is equipped with a plug box containing 8 lightning protected sockets (32 sockets in total).

Convenience & Control: External isolation switches allow you to disconnect power to individual plug boxes or the entire cabinet without opening the doors.

Spill Protection: Integrated spill tray designed to capture leaks and spills, further enhancing operational safety.

Specifications
Capacity: 170 Liters

Design: 2-Door configuration with internal LED lighting

Battery Compatibility: Optimized for Li-Ion batteries

Charging System: Smart, adaptive charging algorithm ensuring efficient power distribution

Construction:
Double steel walls with a 40mm gap for enhanced safety
Complies with FM6050, OSHA 1910.106, and NFPA 30 regulations

Safety Mechanisms:
Overcharge, overheat, and short-circuit protection
Temperature & humidity monitoring
Highly sensitive smoke detector and spill tray

Plug Sockets: 4 levels with 8 lightning protected sockets per level (32 total)

Shelving: Four adjustable, perforated shelves for improved air circulation

Dimensions: 1890mm H x 1090mm W x 460mm D

Warranty:
Cabinet body: 10 years
Lock, parts, and accessories: 1 year

Fire suppression system available separately.
